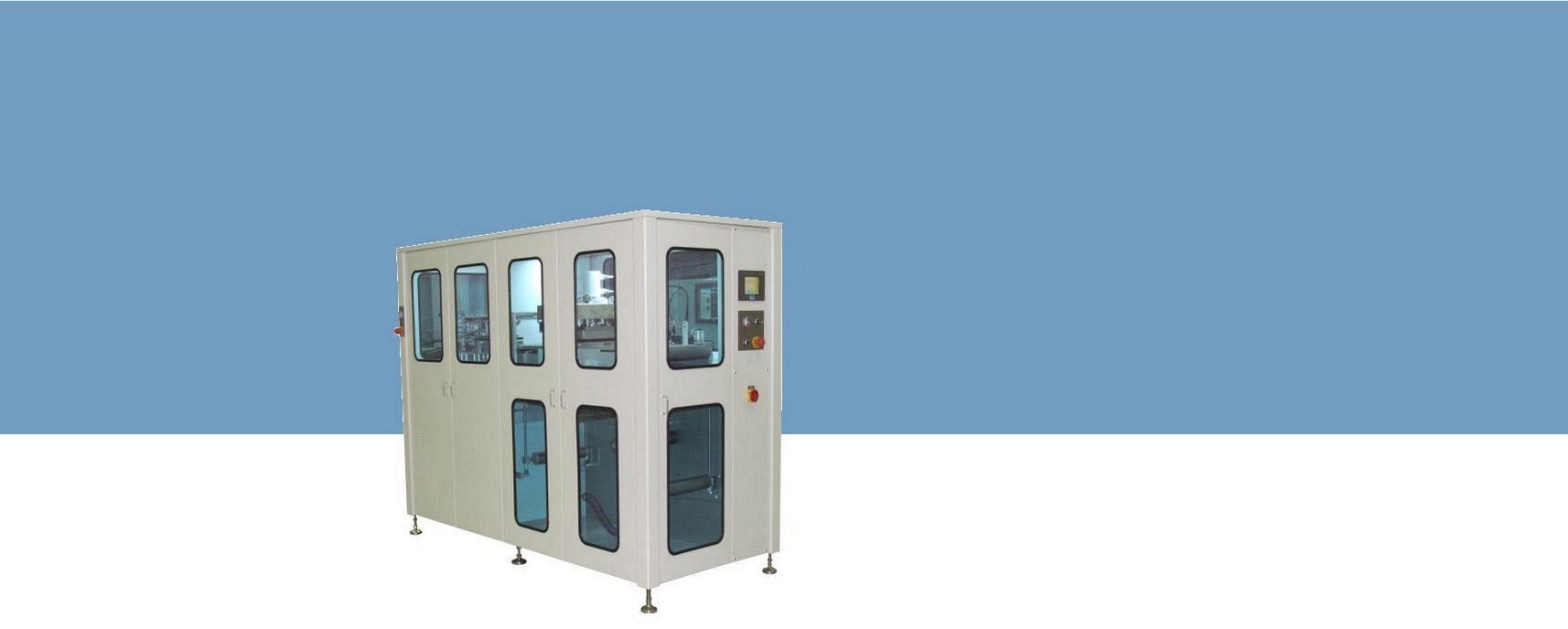

Automatic Green Tape Blanker SC-series
Automatically blanks sheets from a roll of green tape, ready for punching, printing and stacking.
Automatically blanks the sheets from a roll of green tape.
The sheets are suitable for our Tape Punching Machine and Printing and Stacking machines.
Options
- Suitable for freestanding or Mylar based tapes
- Trims sheet edges
- Punches registration holes
- Sorts blanked sheets to a magazine
- Sorts blanked sheets based on thickness deviation
- Elimination of electrostatic charge
- Optical inspection software – sorting sheets according to their quality
- Custom design
| Output | Up to 20 cuts/min |
| Carrier tape width | 250 mm or 450 mm max. (10 or 14 inch), depending on version |
| Cutting width | 160, 250 or 350 mm max. (10 or 14 inch) |
| Cutting length | 160, 250 or 350 mm max. (10 or 14 inch); two cutting types in length direction possible; lateral cutting – only ceramic is cut to desired width |
| Blades and tools material | Blade, punch and die made of carbide |
| Roll outside diameter | 350 mm max. (14 inch) |
| Safety | CE compliant |
| Available options* | Cutting tape edges |
* Options and other requirements have to be specified separately.
