Stacking

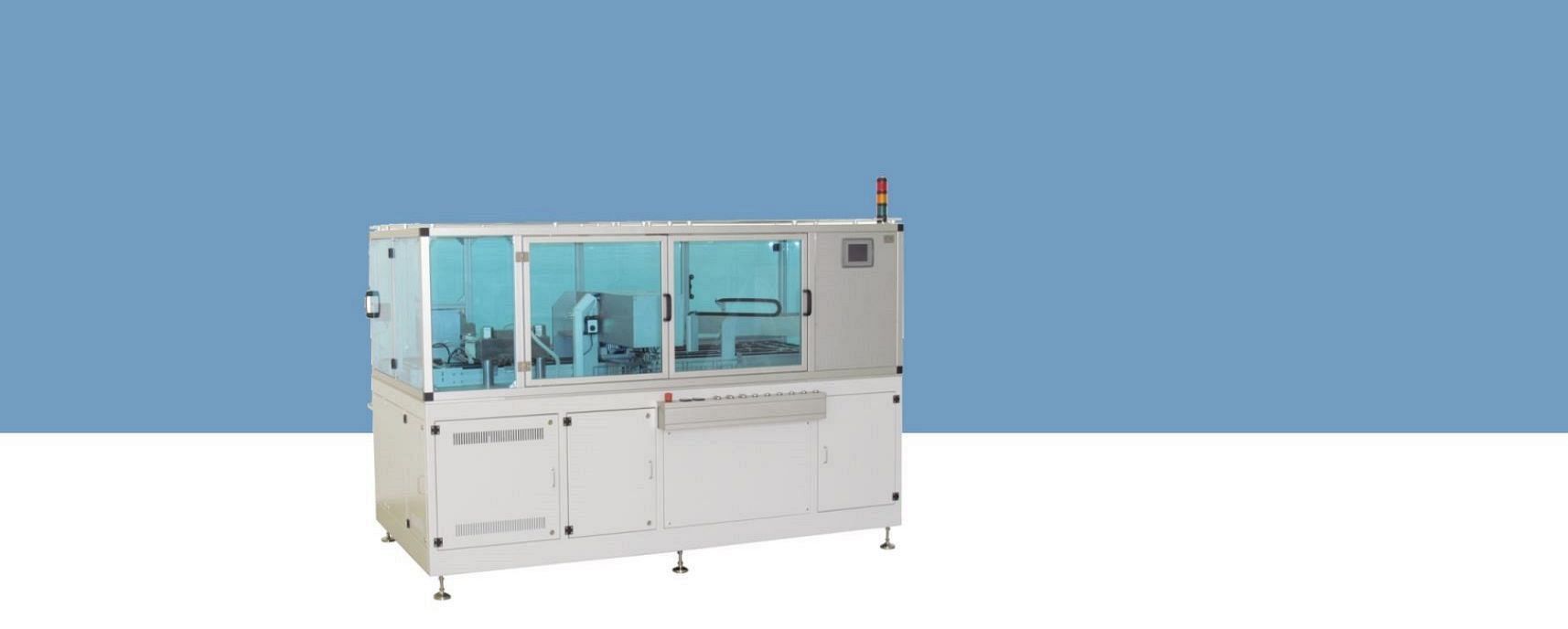

Sheet Stackers SB-series

Simple operation, high output: automatic stacking from foil cassettes, 8 s cycle time.

Simple operation, high output.

Typical cycle time: 8 s
Up to 24 carrier blocks (palettes) processed at the same time
Carrier blocks are loaded into a cassette and automatically loaded onto the transport track

Automatically stacks green ceramic sheets from foil cassettes, for 8 (up to 16) different foil patterns
Automatically removes the carrier film
High stacking force
Short cycle time
Suitable for large production volumes
Positioning pin or CCD vision sheet alignment
Well suited for LTCC applications
Mylar removal station after tacking
Press with paper insertion for a uniform surface and higher layer count

Interested and want to know more?

Tell us about your component and production volume — our engineers will answer with a configuration proposal.

Sheet placement	Automatic from foil cassettes
Registration	High accuracy registration pins or PC controlled vision system
Palette	Standard KEKO or customer palettes
Stacking and pressing area	203 × 203 mm (8 × 8 inch) max.
Press	Hydraulic, with paper sheet insertion to equalise pressing force at the stack surface
Stacking force	Adjustable up to 420 kN, optionally programmable for every layer
Stacking temperature	Max. 120 °C (250 °F), upper plate
Stacking time	Programmable
Typical cycle time	8 s (typically 3 s pressing time)
Operator interface	PLC controlled; pressure, temperature and time adjustable
Electricity	According to customer requirements
Approx. dimensions	L 2.8 m (110 in) × W 1.6 m (63 in) × H 1.7 m (67 in)
