Punching
Punches holes into green ceramic tapes – up to eight tools, ±5 µm positioning, vision pin-breakage test.
Designed to punch holes into green ceramic tapes.

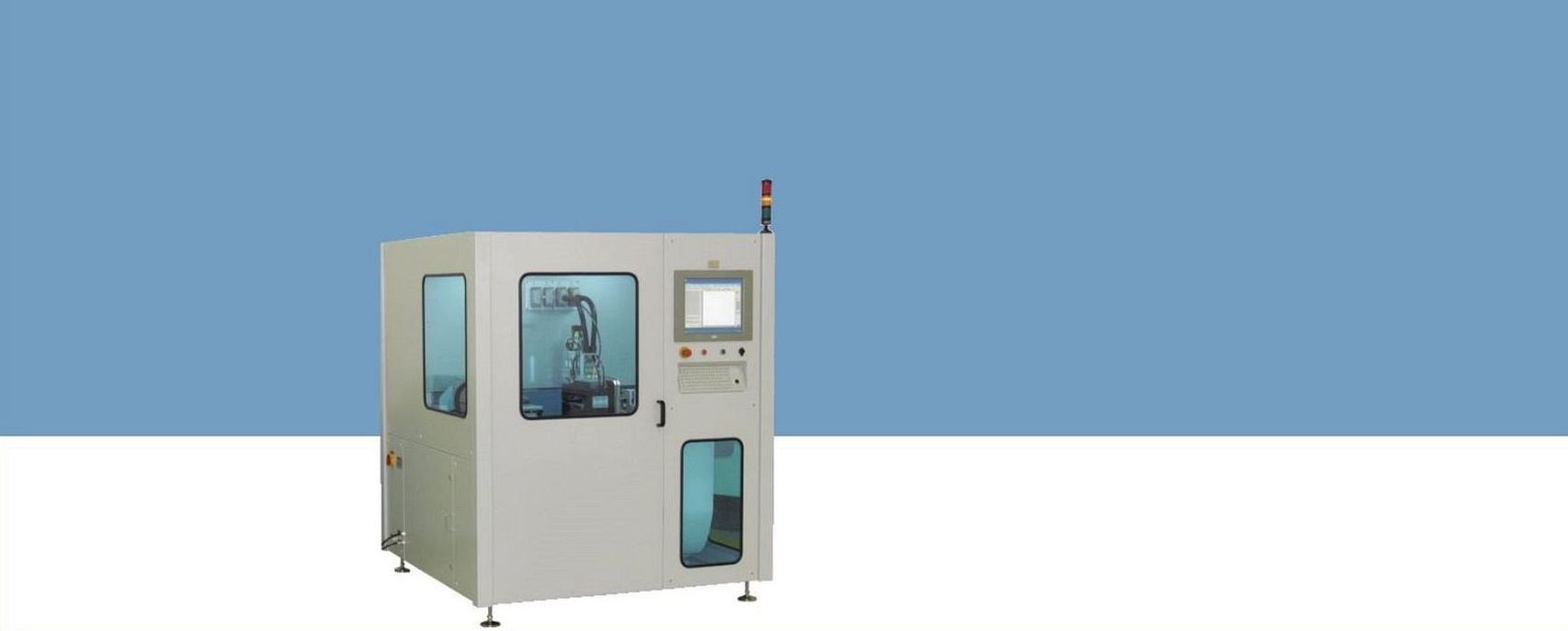

The PAM S-series punching machine with single pin punching tools is designed to punch holes into green ceramic tapes. Both carrier film tape and freestanding tape can be used. The machine is designed for small to medium production volumes with high flexibility.
Up to four or up to eight different tools can be installed to punch four or eight different hole types. The punching table is driven by high speed servo motors via high precision ball screws, with high resolution table position control. A vacuum frame holds the sheet during punching.
Punching units
- Single pin round
- Grid type up to eight pins
- Single pin square or rectangle
- Positioning holes punching unit
Tape handling
- Reel feeder to magazine – PAM-__RC
- Magazine to magazine loading and unloading – PAM-__CC
- Manual loading of individual sheets – PAM-__M
| Punching speed | 13 holes/s at 1 × 1 mm distance |
| Punching area | Up to 225 × 225 mm (9 × 9 inch) |
| Tape thickness | Up to 500 microns (20 mils), to be confirmed |
| Mylar thickness | 30–75 microns (1.2–3 mils) |
| X, Y drive | High precision ball screw and AC servo motors |
| Positioning accuracy | ±5 microns |
| Programming | Manual on the machine or CAD file input (NC Drill or DXF) |
| Sheet fixing | By vacuum, optional metal frame fixing |
| Carrier film thickness | 20–75 microns (0.8–3 mils) |
| Punching pin exchange | Less than 2 minutes, no special alignment required |
| Control | PC |
| Pin breakage test | By camera and vision control (every hole, last hole) |
| Sheet alignment for re-punching | By camera and punching coordinate calculation |
| Tape handling | Manual; automatic magazine to magazine; automatic from roll to magazine |
| Safety | CE compliant |
| Dimensions | Depending on version, approx. L 2.5 m × W 1.5 m × H 2.2 m |
| Electricity | Approx. 2 kW (connection custom) |
| Compressed air | 0.6 MPa, 200 L/min |
| Vacuum | External vacuum source required; optional vacuum pump can be supplied |
