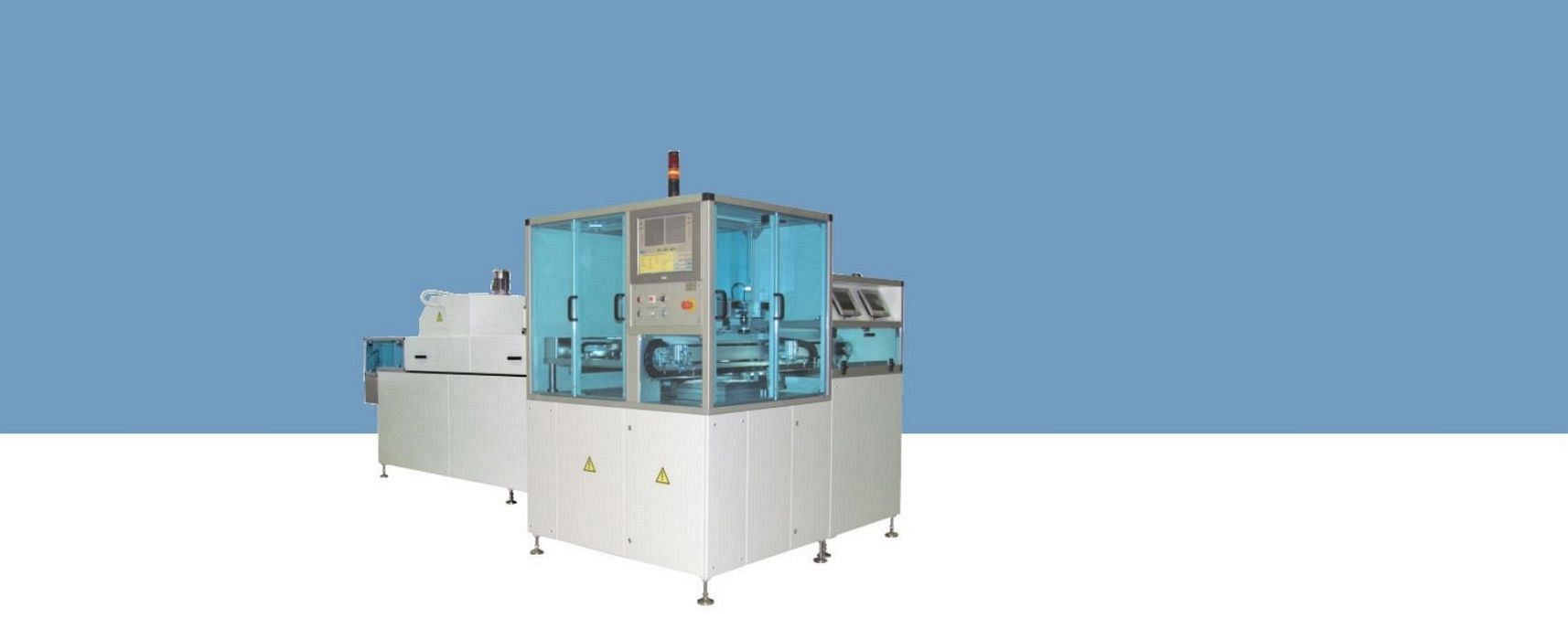

Automatic Screen Printers P-series
Automatic sheet handling, printing and drying for LTCC, MLCC, inductors and hybrids.
Screen printers for diverse precise printing applications in electronic component production: LTCC, MLCC, inductors, printed circuits, hybrids and more.
- For more demanding applications
- Automatic sheet handling, printing and drying process
- Two models available to meet all customer requirements
- Fully programmable printing parameters
- Print/print, print/flood, flood/print, on-contact print
- Stencil printing, via filling and screen cleaning printing
- Extensive options for demanding advanced technology applications
Available options
- Via filling
- Through-hole printing (low viscosity pastes only)
- Stencil frame for stencil tensioning and quick fixing
- Custom printing tables and substrate fixing
- Cameras in printer + cross-line software for easy screen alignment
- Dryer options
- Antistatic substrate cleaning before printing
- Automatic paste supply
| Max. printing area | 210 × 210 mm (8 × 8 inch) |
| Squeegee speed | 0–350 mm/s (0–14 inch/s) |
| Squeegee force | 0–250 N (0–55 lbf) |
| Average accuracy | ±5 microns (±0.20 mil) |
| Standard screen size | 450 × 450 × 25 mm |
| Max. screen size | 550 × 550 × 30 mm |
| Automatic vision alignment to fiducials | A model only |
| Quick screen registration | A model only |
| Touch screen and joystick table control | A model only |
| Average cycle time, print to print | 12 s in print/flood mode |
| Magazine height | Standard 50 mm (2 inch) |
| Drier length | 5 m (16.4 ft) |
| Installed drying power | Two-zone drier, 5.4 kW per zone |
| Max. drying temperature | 120 °C (248 °F) |
| Drying time | 5 min at 12 s cycle |
| Dimensions (printer + drier) | Approx. L 6100 × W 1730 × H 1820 mm |
| Power consumption | 12 kW |
| Compressed air | 0.6 MPa, 200 L/min |
| Vacuum | -0.08 MPa (0.02 MPa absolute), 300 L/min; optional air/vacuum exchangers |
